How to Make a Led Backlight for A Stained Glass Panel: Make an LED Backlight Today!

To make an led backlight for a stained glass panel, you will need a led light strip, power source, and a diffuser. First, measure and cut the led strip to fit the glass panel.

Then, attach the led strip to the panel and connect it to the power source. Lastly, cover the led strip with a diffuser to soften the light and make it more even. Adding led backlighting to a stained glass panel can enhance its beauty and make it more eye-catching.

How to Make a Led Backlight for A Stained Glass Panel

With a few simple steps, you can create a stunning display piece that will be sure to impress. In this article, we will guide you through the process of making an led backlight for a stained glass panel. So, whether you’re a diy enthusiast or a stained glass artist, keep reading to learn how to illuminate your artwork and make it stand out even more how to make a led backlight for a stained glass panel.

Tool And Materials Required

Are you tired of traditional stained glass panels and want to add some modern flair to your art piece? Creating an led backlight for your stained glass panel will illuminate it and add a stunning visual effect that you never thought possible.

But, before getting started, there are some tools and materials that you will need. Here is a list explaining what you need, where to find them, and their estimated costs.

Leds And A Power Source:

  • High brightness led lights are a necessity for backlighting your stained glass panel. You can get them at any electronic or hardware store.
  • The type of led lights you need and the power source you require is dependent on the size of your panel.
  • Led lights and power sources cost between $10-$60 depending on the size and quality you choose.

Wood Or Metal Frame:

  • A sturdy frame is essential to mounting your glass panel and led lights. It should be made of either wood or metal for durability.
  • The size of your frame will depend on the dimensions of your panel. You can get them from any hardware or craft stores.
  • Wood or metal frames cost between $20-$100 depending on the size and material you choose.

Power Tools Including Saws And Drills:

  • Cutting the wood or metal frame requires using saws and drills.
  • You can use any type of saws, such as jigsaws, circular saws, or hand saws. Similarly, you can use any type of drill, such as cordless or corded.
  • The cost of power tools varies depending on the brand and quality, but you can quickly get a budget-friendly saw and drill set for $50-$100.

Wires, Pliers, And Soldering Iron:

  • To connect the led lights to the power source, you will require wires, pliers, and a soldering iron.
  • Wires should be long enough to cover the distance between the led lights and power source. Pliers help cut the wire and strip the plastic coating. A soldering iron is a necessity for connecting the wires and leds.
  • The cost of wires, pliers, and a soldering iron depends on the quality and brand, but it should not exceed $50.
How to Make a Led Backlight for A Stained Glass Panel

With the right tools and materials, you can create an led backlight for your stained glass panel. By following these guidelines, you can make sure your project is a success. So, go ahead and create your masterpiece – and let the light shine on it!

Choosing The Design And Size Of The Frame

When it comes to making a stained glass panel, having an led backlight can enhance the panel’s overall appearance and highlight its intricate details. However, before you can add an led backlight, you need to choose the right size and design for your frame to use it effectively.

Explanation Of How The Design And Size Of The Frame Should Be Based On Their Intended Use

The size and design of your frame are crucial as they will determine how well your stained glass panel will look when lit from behind. Putting some thought into your frame design can also impact how you use your panel in your home.

Here are some key points to consider:

  • Start by deciding what type of panel you want to create. Is it for displaying artwork or home decor?
  • Consider the dimensions of your panel and the size of the room where it will be displayed.
  • Think about the thickness of the frame and how it will impact the overall weight and design of the panel.

Example Of The Size And Design Of The Frame Based On Use As An Artwork Or Home Décor

The size and design of your frame will depend on the stained glass panel’s intended use. If you’re creating artwork, you might go for a square or rectangular shape with dimensions that showcase the piece’s beauty, such as 12 x 12 inches or 16 x 20 inches.

For home decor, you might need to choose a frame that complements your existing decor and fits a specific space, for example, a 30 x 60-inch panel for a large window.

When choosing a frame for your led backlight, remember to take into account the thickness of the glass and the weight of the panel. You may need to choose a thicker frame with more stability for larger and heavier panels.

Additionally, if you’re displaying the panel in a sunny area, consider going for a darker-colored frame to prevent glares from the sunlight.

By taking the time to consider your options, you can end up with a beautifully designed led-backlit stained glass panel that will make a stunning addition to your home decor.

Prepare The Frame

A sturdy frame serves as an essential foundation for any stained glass panel. The frame not only holds all the glass pieces securely, but it can also add a decorative touch to the final product. Follow these steps to prepare the frame:

Cutting And Measuring The Wood Or Metal Frame:

  • Measure the dimensions of the glass panel to determine the size of the frame.
  • Cut the wood or metal frame as per the measurements, ensuring that it is a millimeter shorter than the glass panel.
  • Make sure all the corners are precisely 90 degrees.

Finishing And Sanding The Frame:

  • Sand the edges of the frame using sandpaper, starting with coarse grit and finishing with fine grit, to make them smooth.
  • Apply a protective coating, such as polyurethane, to the frame to protect it from moisture and debris.

Ensuring Frame Is Stable And Can Support Led Lights:

  • Check that the frame is stable and can support the weight of the glass pieces and led lights.
  • Use a level to ensure that the frame is even.
  • Position the led strips around the perimeter of the frame and make sure all the light strips are equidistant.
  • Attach the led strips to the frame with adhesive tape or glue.

Preparing the frame is a crucial step in making a stained glass panel with led backlight. By following the steps above, you can ensure that the final product is sturdy and functional.

Choosing The Led Light And Wiring The Frame

Explanation Of The Type Of Led Light To Choose For The Project

When choosing an led light for your stained glass panel, it’s crucial to consider the following factors:

  • Color temperature: Warm white (2700-3000k) or daylight (5000-6500k) are the best options, depending on the desired effect.
  • Brightness: The number of lumens will depend on the size of the stained glass panel. Typically, 100-200 lumens per foot of panel are sufficient.
  • Size and shape: Led strip lights are an excellent choice for most stained glass projects. Consider the dimensions of your panel when selecting the length and width of the led strip.
  • Adhesive back: Look for led strip lights with an adhesive back to make installation easier.

How To Wire And Solder The Led Light

Here are the steps for wiring and soldering your led light:

  • Cut the led strip to fit the size of your stained glass panel. Cut carefully, making sure not to cut through any of the led elements.
  • Strip the wires at one end of the led strip. Attach the wires to your power source.
  • Use a soldering iron to solder the wires to the led strip’s copper pads. Be careful not to let the soldering iron get too hot as this can damage the led elements.
  • Repeat the process for the other end of the led strip, making sure to attach the wires to the correct polarity pads.

Attaching Wires To The Power Source And Testing The Led Light

Once you have wired and soldered your led light, it’s time to attach the wires to the power source and test the light. Here’s how to do it:

  • Cut one end off of a male dc power connector, revealing the two wires inside.
  • Strip the ends of the two wires, exposing the copper inside.
  • Twist the exposed copper on each wire tightly.
  • Solder the wires to the correct polarity input on the led strip.
  • Plug the male dc power connector into a power supply.

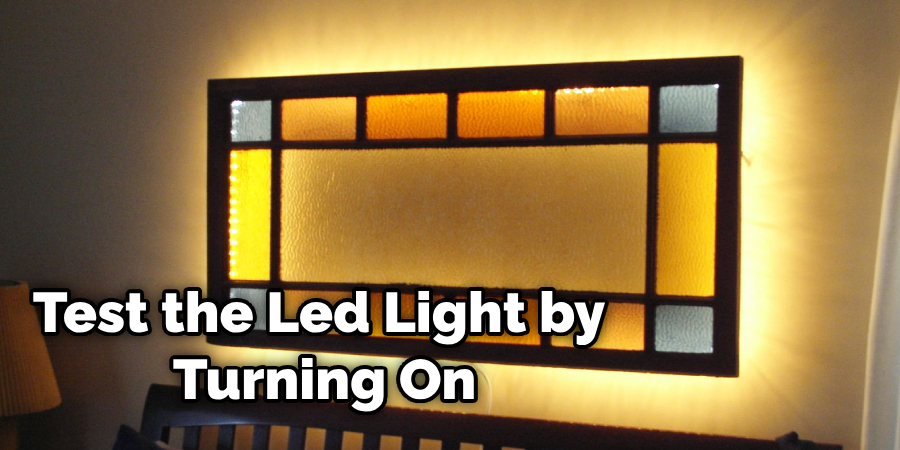

  • Test the led light by turning on the power supply. Make sure that all leds light up and that the light is bright enough for your project.
How to Make a Led Backlight for A Stained Glass Panel

That’s it – you’re done! By choosing the right led light and wiring it correctly, you can add a stunning led backlight to your stained glass panel.

Mounting The Glass Panel And Led Backlight

If you’re looking to add an extra pop of color to your stained-glass panel, adding an led backlight can make it really stand out. Mounting the glass panel and led backlight requires a few basic steps that are easy to follow.

Steps To Mounting The Glass Panel On The Frame:

  • First, ensure that your frame is of the appropriate size to fit your stained-glass panel.
  • Gently sand the edges of the glass panel to avoid any sharp edges.
  • Lay your glass panel on the frame to ensure it fits in the frame and make any adjustments if needed.
  • Apply a thin line of silicone adhesive around the edge of the frame, ensuring there are no gaps between the glass and the frame.
  • Gently press the glass panel into the frame and hold it firmly for a couple of minutes to allow the silicone to set.

Mounting The Led Backlight On The Back Of The Frame:

  • Measure the size of your frame, making sure to add an extra inch for the led strip.
  • Cut the led strip to the appropriate size with scissors or a knife, being careful not to damage the strip.
  • Peel off the adhesive backing on the led strip and press it firmly onto the back of the frame.
  • Ensure that the led strip is facing out and that the wires are sticking out of one end of the frame.
  • Secure the wires in place by wrapping them around a small nail or screw.

Final Touches And Finishing The Led Backlight:

  • Connect the wires to the power supply and turn on the lights to ensure they’re working correctly.
  • If there’s any excess wire, neatly fold it and secure it in place with a zip tie or cable clamp.
  • Attach a switch to the wires for easy on/off control.
  • Finally, place your glass panel into the frame, turning on the led backlight for a stunning visual effect.

By following the above steps, you can easily mount your glass panel and led backlight for a seamless finish. So, why wait? Get started on your next project today!

Frequently Asked Questions Of How To Make An Led Backlight For A Stained Glass Panel

How Do I Make An Led Backlight For A Stained Glass Panel?

To make an led backlight for a stained glass panel, you need to gather materials including led lights, acrylic sheets, soldering tools, and aluminum bars. Then, create small holes in the acrylic sheet for the led lights to be placed and connect the led lights together with the help of soldering tools.

Finally, assemble all the components together by placing acrylic sheets on the stained glass panel and using aluminum bars as frames.

How Do Led Backlights Work In A Stained Glass Panel?

Led backlights interrupt the flow of natural light through stained glass, making the colors appear bolder and brighter. Led backlights work by producing light from a semiconductor material; the light is then spread through the acrylic sheet, illuminating the stained glass panel.

How to Make a Led Backlight for A Stained Glass Panel

What Benefits Do Led Backlights Offer In A Stained Glass Panel?

Led backlights enhance the atmosphere of stained glass panels by producing brighter, bolder colors that can be seen in low light situations. They are energy-efficient and environmentally-friendly. Additionally, the led lights have a long lifespan which means they require less maintenance cost over time.

Can I Customize The Led Backlight Color To Match My Stained Glass?

Yes. Led lights come in different colors and can be customized to match your unique stained glass panel design. You can choose from a wide range of colors including red, blue, and green, and even control the brightness of the backlight using dimmer switches or remote control.

Is It Possible To Install An Led Backlight On An Existing Stained Glass Panel?

Yes, it is possible to install an led backlight panel on existing stained glass panel. The led backlight panel can easily be attached to the back of the stained glass using adhesive tape, and the process does not require any modifications to the original stained glass panel.


After following all the steps mentioned above, you have successfully made an led backlight for your stained glass panel. Now it’s time to hang your piece and admire its beauty in all its glory. Not only does an led backlight enhance the beauty of a stained glass panel, but it also provides a gentler light source than direct sunlight or incandescent lamps, preserving the original colors for a longer period of time.

By using led strips and a few simple tools, you can create a professional-grade backlight for your stained glass at home, with ease. With this newfound skill, you can now experiment with different colors and designs, and create your own unique pieces of art.

Get ready to impress your family and friends with your stunning creations, and perhaps even start your own stained glass business. The possibilities are endless how to make a led backlight for a stained glass panel!
